Tracing Gantt Chart

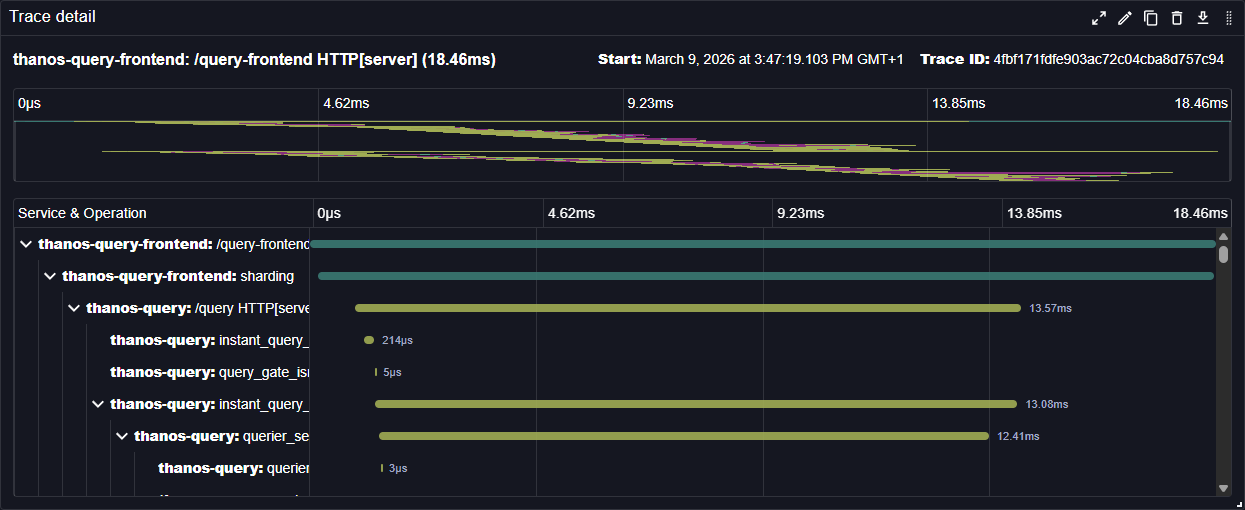

The Tracing Gantt Chart plugin provides Gantt chart visualization for distributed tracing data in Perses dashboards. This panel plugin displays trace spans in a timeline format, making it easy to visualize trace duration and dependencies.
See also technical docs related to this plugin:
Item actions#
Item actions let you trigger events or webhooks with the details of a span, for example to open the logs of a span in another plugin or application. Actions are configured in the Item Actions tab of the panel editor:
- Enable Item Selection: adds a checkbox to each span row, and a checkbox in the table header to select all spans of the trace. The checked spans are exposed as the panel selection. The selection is cleared when another trace is loaded.
- Display Actions with Each Item: shows the actions as buttons in the span detail pane, below the span name. These actions are executed with the span opened in the detail pane only.
- Display Actions in Panel Header: shows the actions in the panel header. Requires Enable Item Selection:
these actions are executed with the checked spans, either once per span (
individualbatch mode) or once for all spans (batchbatch mode).
Each action receives the data of a span and its trace, as { "span": { ... }, "trace": { ... } }.
Fields can be referenced in URL and body templates with ${__data.fields["<path>"]}, e.g. ${__data.fields["span.name"]}:
| Field | Description |
|---|---|
span.traceId, span.spanId, span.parentSpanId | Identifiers of the trace, span and parent span |
span.name, span.kind | Span name and span kind |
span.startTimeUnixMs, span.endTimeUnixMs | Start and end time of the span, in milliseconds |
span.status.code, span.status.message | Span status |
span.scope.name, span.scope.version | Instrumentation scope |
span.resource.serviceName | Service name |
span.resource.attributes, span.attributes | Resource and span attributes, as OTLP key-value lists |
span.events, span.links | Span events and links, with their attributes |
trace.traceId, trace.spanCount | Identifier of the trace and its number of spans |
trace.startTimeUnixMs, trace.endTimeUnixMs | Start and end time of the whole trace, in milliseconds |
Object fields are interpolated as JSON, e.g. ${__data.fields["span.attributes"]}.
Attributes are lists of OTLP key-value pairs (e.g. [{ "key": "http.method", "value": { "stringValue": "GET" } }]),
so they cannot be referenced individually with a field path: use the whole list, or the full data with ${__data:json}.
In batch mode, ${__data.fields["<path>"]} joins the values of all spans (CSV by default), and ${__data[<index>].fields["<path>"]} references the span at this index.
An event action dispatches a CustomEvent on window, allowing any plugin or application to handle it.
Without body template, the event detail is a JSON string, which depends on the batch mode of the action:
individual: one event per span, with{ "id": <spanId>, "data": { "span": ..., "trace": ... } }batch: one event for all spans, with{ "items": [{ "span": ..., "trace": ... }, ...] }
For example, a listener of an individual event action:
window.addEventListener('span-logs', (event) => {
const { data } = JSON.parse((event as CustomEvent<string>).detail);
openLogs({ traceId: data.span.traceId, spanId: data.span.spanId, service: data.span.resource.serviceName });
});And a listener of a batch event action:
window.addEventListener('spans-logs', (event) => {
const { items } = JSON.parse((event as CustomEvent<string>).detail);
openLogs(items.map((item) => ({ traceId: item.span.traceId, spanId: item.span.spanId })));
});
